Fiber Optic Cleaver – 16-Face Tungsten Blade, 48000 Cuts, <0.5° Accuracy, 125 µm Bare Fiber, 9-16 mm Length, Auto Scrap Box, Dual-Action Manual | Fiber Cleaver Tool for 0.25/0.9/3.0 mm FTTH Fiber

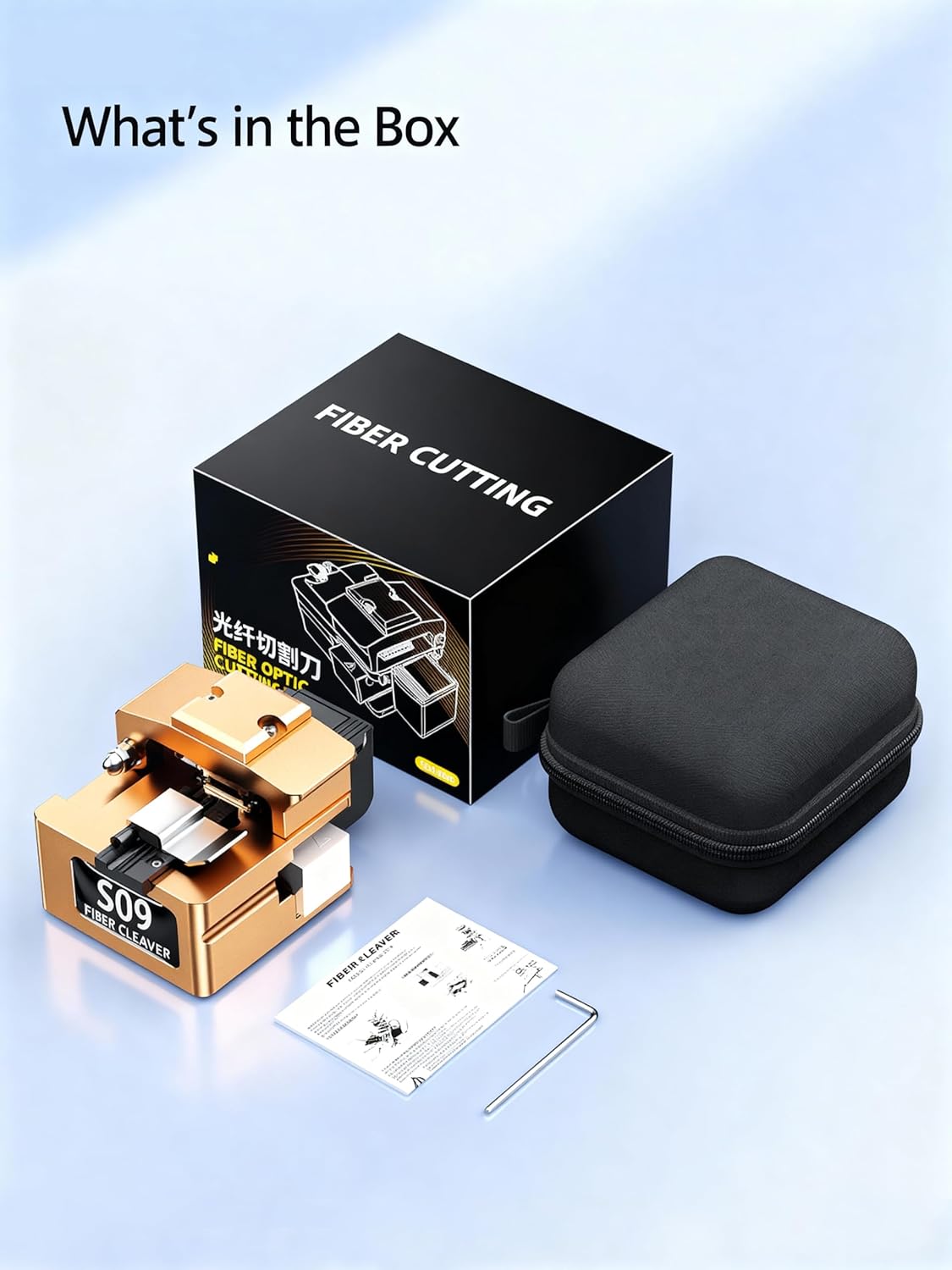

Product Brief Cut like a pro—anywhere, anytime. The pocket-size fiber cleaver packs a 16-face tungsten blade (48,000 times, <0.5°) and dual-action manual control for lab-grade cleaves in the field. Auto-center 125 µm–900 µm fibers, laser vernier sets 9-16 mm without tools, and an auto-scrap box keeps your bench spotless. CNC-aluminum body, hex key pocket, 255 g weight—slip it into your kit and cleave on the goPackage 1 × Fiber Optic Cleaver 1 × Hex Key for Blade Adjustment 1 × Black Carrying Case 1 × User Manual 1 × Color Outer Carton Specification Material: Aluminum alloy body + Stainless-steel guide rails + Tungsten steel blade Applicable Optical Fiber: Single Core (Ø0.25 mm/Ø0.9 mm/Ø3.0 mm)/Jumper/Tail fiber/Fiber optic cable Blade Life: 48,000 times Applicable Bare Fiber Diameter: 125 µm Cutting Angle: <0.5° Fiber Cutting Length: 9-16 mm Operating Temp: -13°F to 131°F (-25°C to 55°C) Product Size: 3.23"×2.17"×2.05" / 8.2×5.5×5.2 cm Product Weight: 0.25 lb / 255 g Package Size: 3.94"×3.54"×2.76" / 10×9×7 cm Gross Weight: 0.66 lb / 300 g

• Blade & Precision: 16-face tungsten steel blade delivers mirror-smooth end-faces; 48,000 Times, <0.5° angle accuracy and <0.01 dB fusion loss meet IEC 61300-3-27 telecom grade
• Adaptive Fiber Guidance Suite：Triple-precision V-channels (0.25 mm bare-fiber, 0.9 mm tail-fiber and 2.5-3 mm jacket slots) self-align 125 µm bare, 250/900 µm primary-coated and jacketed fibers without adapter swaps; laser-engraved vernier (±0.5 mm) removes external length stops, while a shock-absorbing base isolates hand tremors, suppressing micro-fractures during pole or ladder work
• Operation Mode: Dual-action manual cleaver—two-step cut prevents secondary wear; user resets after each cleave, ensuring cold-splice & fusion consistency without fiber rebound
• Fiber Compatibility: The upgraded 3-in-1 fixture accepts 0.25 mm, 0.9 mm and 3.0 mm single-core fibers, jumpers, tail fibers and standard fiber optic cables—covering every common cutting need. An integrated, precision-etched scale eliminates the need for a separate length stop
• Mechanics & Materials: CNC-milled aluminum chassis with stainless-steel guide rails: the lightweight alloy body delivers rock-solid rigidity, while the low-friction slide preserves micron-level accuracy through thousands of cycles. A built-in hex key pocket keeps field adjustments one-hand away
• Waste Management: Integrated auto-scrap box collects fiber shards; no cleanup tools needed—keeps bench safe
• Portability & Applications: Pocket-size3.23"×2.17"×2.05" (8.2×5.5×5.2 cm) and 0.25 lb (255 g) ideal for FTTH fusion, data-center patching, lab R&D, training programs—carry anywhere, cut anytime
