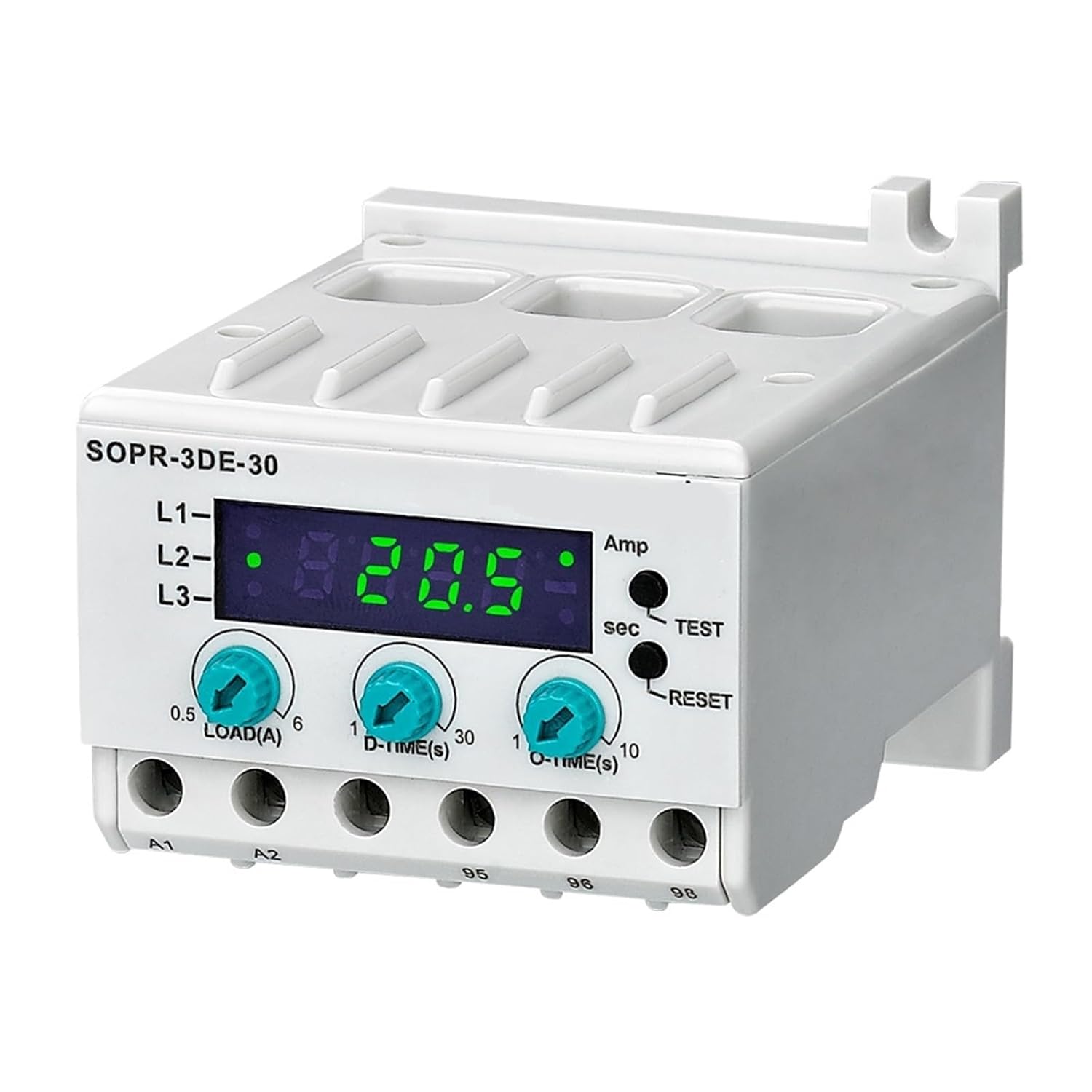

SOPR-3DE Digital Overload Relay Motor Protector Thermal Overload Relay 1Pcs(Un 90-260VAC,10-120A)

Relays / Current Monitoring RelaysSOPR-3DE serie digital overload and phase lost relays are designed toprevent the failures originated from motor heat.SettingD-Time: Set two to three seconds longer than the motor starting time.O-Time: Over-current run time.Set less than the motor's endurance time with over-current.LOAD: Set over 110% of the motor started current or under 120% of its operating current.Relay ConditionWhen Powered: 95(COM) and 96(NC)is open circuit,95(COM)and 98(NO) is short circuit.When Tripped: 95(COM) and 96(NC) is short circuit, 95(COM)and 98(NO) is open circuit.MaintenancePeriodic testing of TEST button is recommended to ensure the full protectionand regularly as preventive maintenance.Switch off the device and release from connections.Clean the trunk of device with a swab.Don't use any conductor or chemica might damagethe device.Make sure device works after cleaning.SpecificationsCurrent Range............ : Type05) 1-6AType30) 5-30AType60) 5-60AType120) 10-120aOperating Voltage(Un): Tpye24) 24VAC/DCTpye220) 90-260VACOperating Frequency....: 50/60Hz<;2WOperating Temperature: -20.....+55Waiting(t)......................: D-Time 1-30sO-Time 1-10sAsymmetry Set.............: %±1Contact.........................: 5A 250VAC Resistive LoadConnection Diagrams..: 35mm (D) or Pane(P)DimensionsConnection DiagramTheory : Thermal Relayis_customized : YesContact Load : Low PowerModel Number : SOPR-3DEUse : ProtectiveFeature : SealedCurrent Range(A) : 0.5-6A / 3-30A / 5-60A / 10-120AMain Circuit Wiring : Through CoreRelay output : 1cProtected object : motor
